Connector

4 parts

4 verified Connector parts from the JLC/LCSC catalog. Every entry ships with schematic symbol and PCB footprint, plus datasheet mirror and 3D model where available — ready to drop into a design headed for JLC assembly.

	Part	LCSC	Description	Package	JLC class

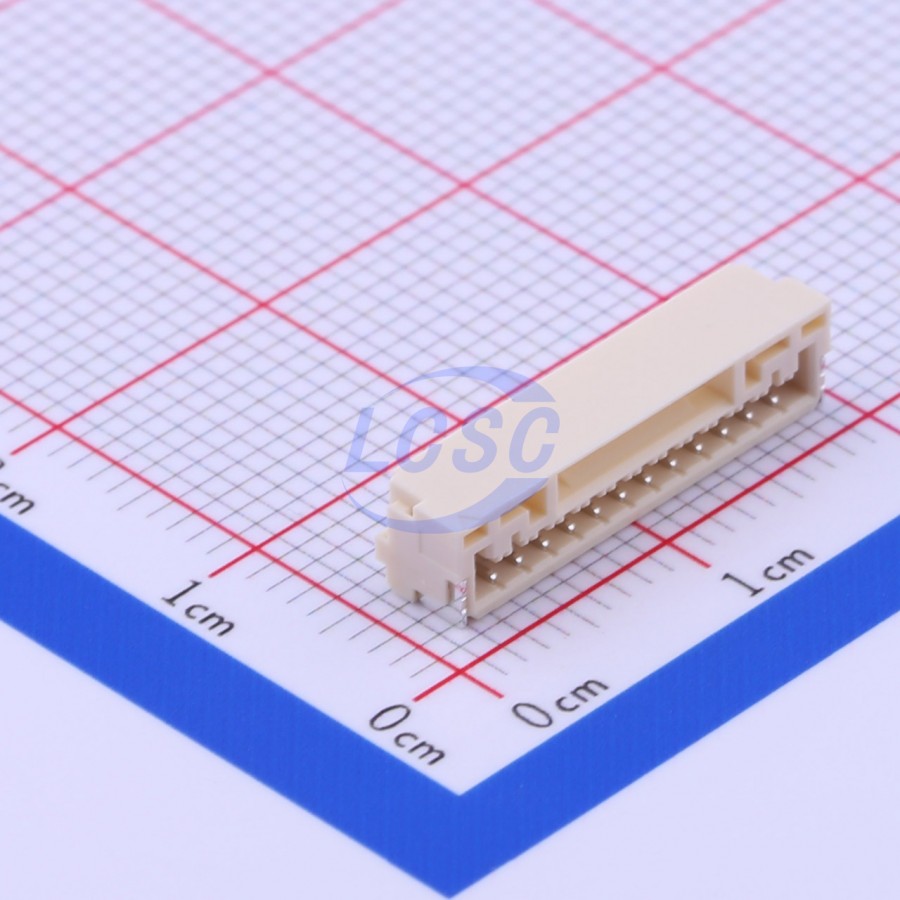

	SM12B-GHS-TB(LF)(SN) JST	C265421	Host SPI/status connector	Connector_JST:JST_GH_SM12B-GHS-TB_1x12-1MP_P1.25mm_Horizontal	Extended

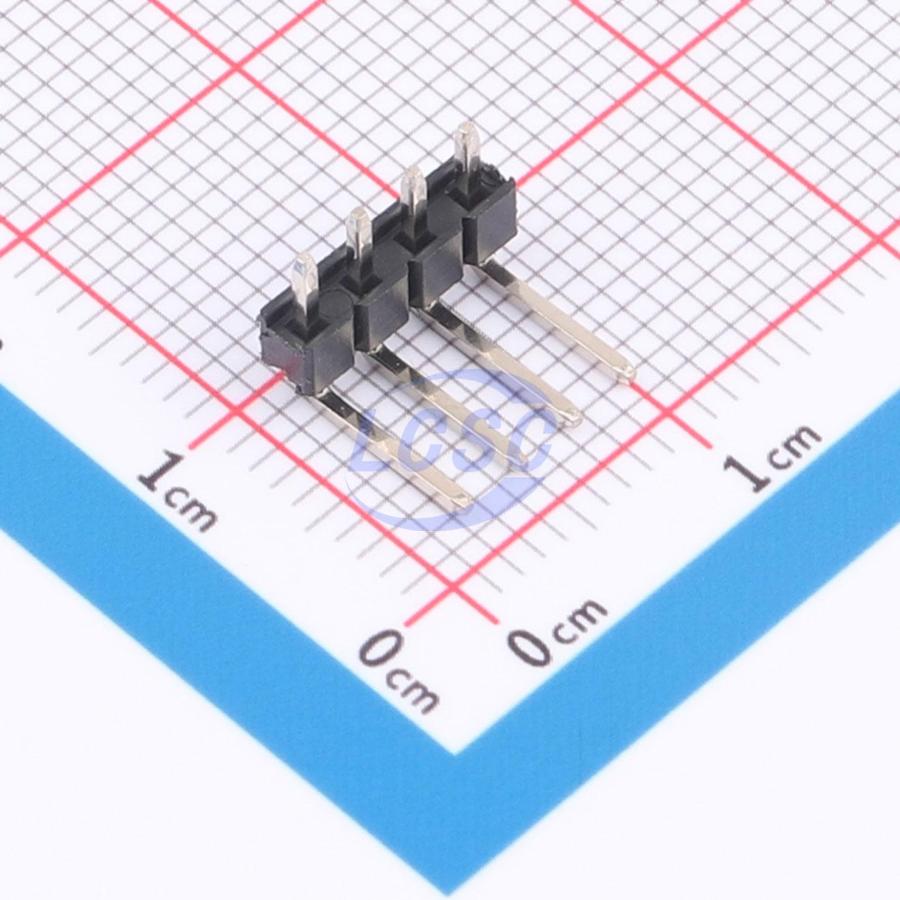

	2011-1X04G00RB	C49569588	1x4 2.54mm debug header: SWDIO/SWCLK/GND/+3V3	HDR-TH_4P-P2.54-2011-1X04G00RB	Extended Part

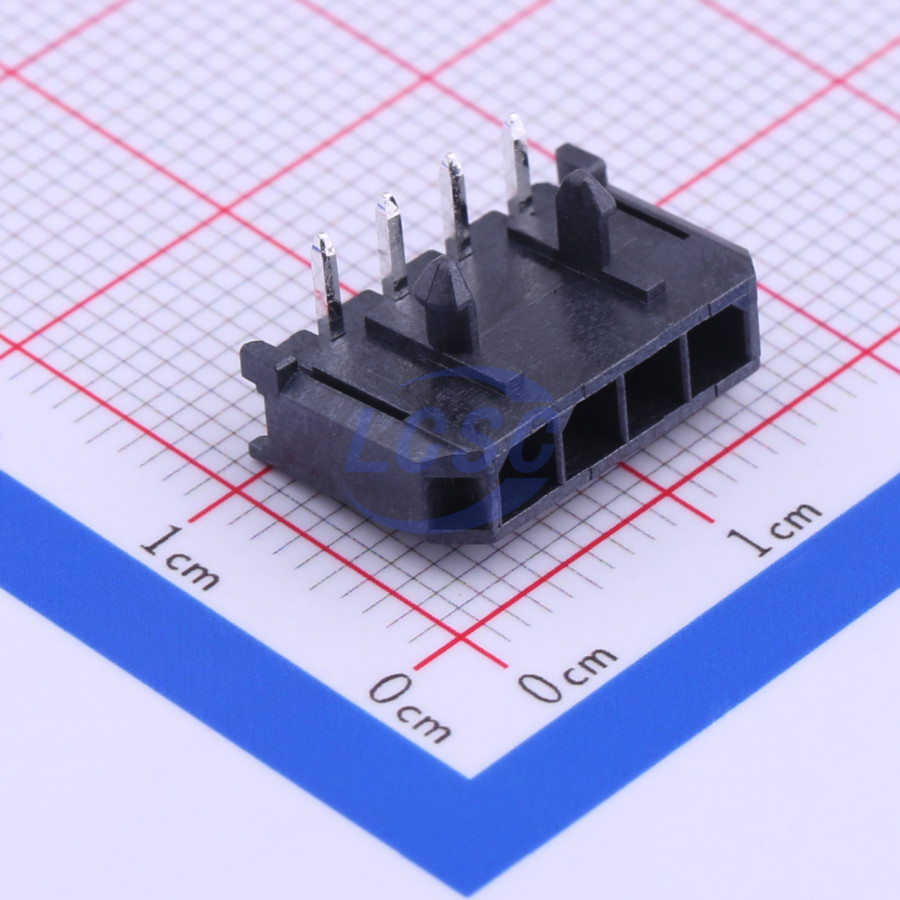

	436500400	C277684	Isolated PRIMARY_5V output connector	Connector_Molex:Molex_Micro-Fit_3.0_43650-0400_1x04_P3.00mm_Horizontal	Extended
	接线端子KF128HL5.08mm双层4PIN	C9900021584	Placeholder 4-pin terminal block for Deutsch DT04-4P harness connector (V_TRUCK_RAW/GND/CAN_H/CAN_L) - swap for real Deutsch panel-mount footprint at layout/DFM	CONN-TH_4P-P5.08_KF128HL5.08MM	Extended Part
