2011-1X04G00RB

C49569588 Extended Part

1x4 2.54mm debug header: SWDIO/SWCLK/GND/+3V3

Extended part — assembled from JLC's extended library, which adds a small one-time feeder fee per part number.

Footprint

loading footprint…

Engineering notes

Package And Footprint

Package / footprint name: HDR-TH_4P-P2.54-2011-1X04G00RB
Pin count: 4
EasyEDA symbol UUID: Not verified
EasyEDA footprint UUID: Not verified
EasyEDA device UUID: 352e084b39a34f49a7e9a38d8087d18a
EasyEDA library UUID: 0819f05c4eef4c71ace90d822a990e87

Power And Operating Modes

Notes: Capture rail limits, quiescent current, and enabled/disabled states when relevant.

Selection Notes

Good for: reuse when package, electrical ratings, footprint, and assembly class match the project constraints
Known layout constraints: Verify package land pattern, decoupling requirements, thermal pad, RF keepouts, crystal routing, and boot straps from the datasheet.
Equivalent search hints: match category connector, interfaces none captured, package HDR-TH_4P-P2.54-2011-1X04G00RB, and EasyEDA footprint UUID unknown.

Design files & assets 7 files · click to expand

Datasheet PDF (mirrored) datasheet pdf

EasyEDA device easyeda device

in EasyEDA

EasyEDA library easyeda library

in EasyEDA

EasyEDA Pro device: C49569588 easyeda pro device

EasyEDA Pro library (device+symbol+footprint): C49569588 easyeda pro lib

EasyEDA component source (symbol + footprint geometry) easyeda source

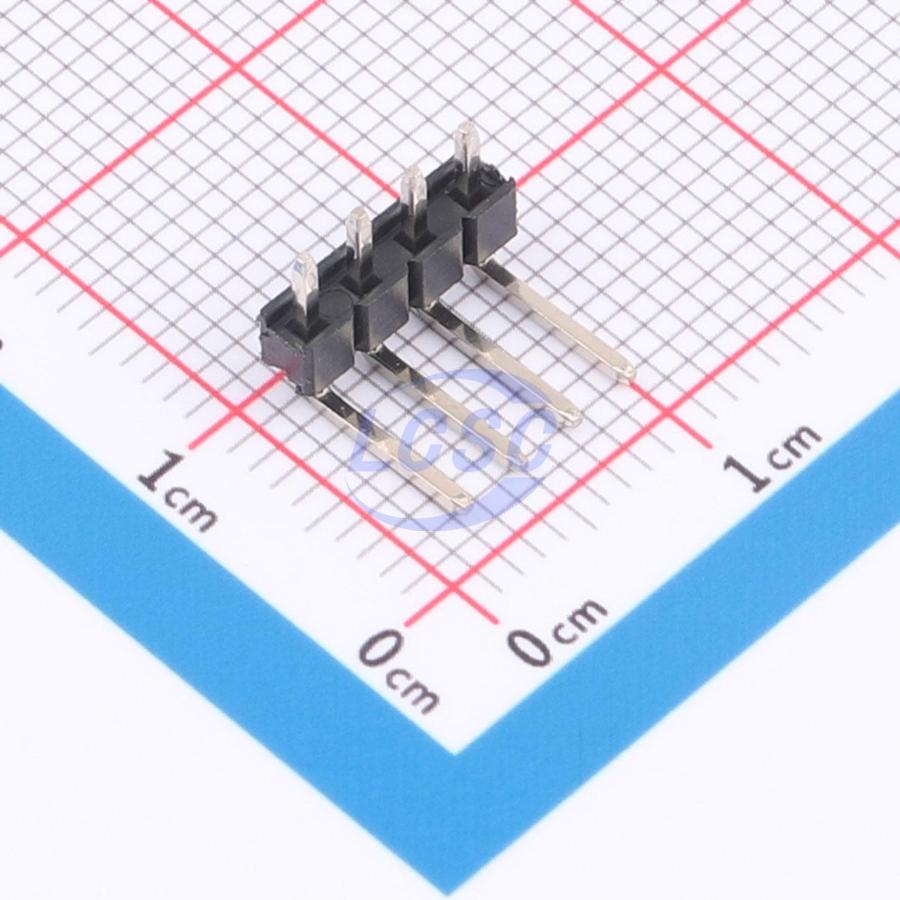

JLC/LCSC product image jlc image
