Resistor

45 parts

Chip resistors across the common E-series values — pull-ups, dividers, current sensing and termination. Registry entries are JLC Basic parts wherever possible, so they add no feeder fees.

How to choose

Default to 0402/0603 1% parts; use larger sizes only for power or hand-rework reasons.
Current-sense duty needs dedicated low-value, tight-tolerance parts — see Current Sense Amplifier for the readout side.

Part	LCSC	Description	Package	JLC class
100kΩ 0603 1% Texas Instruments	C25803	TPS54360 feedback divider top resistor (to V_5V)	R0603	Basic Part

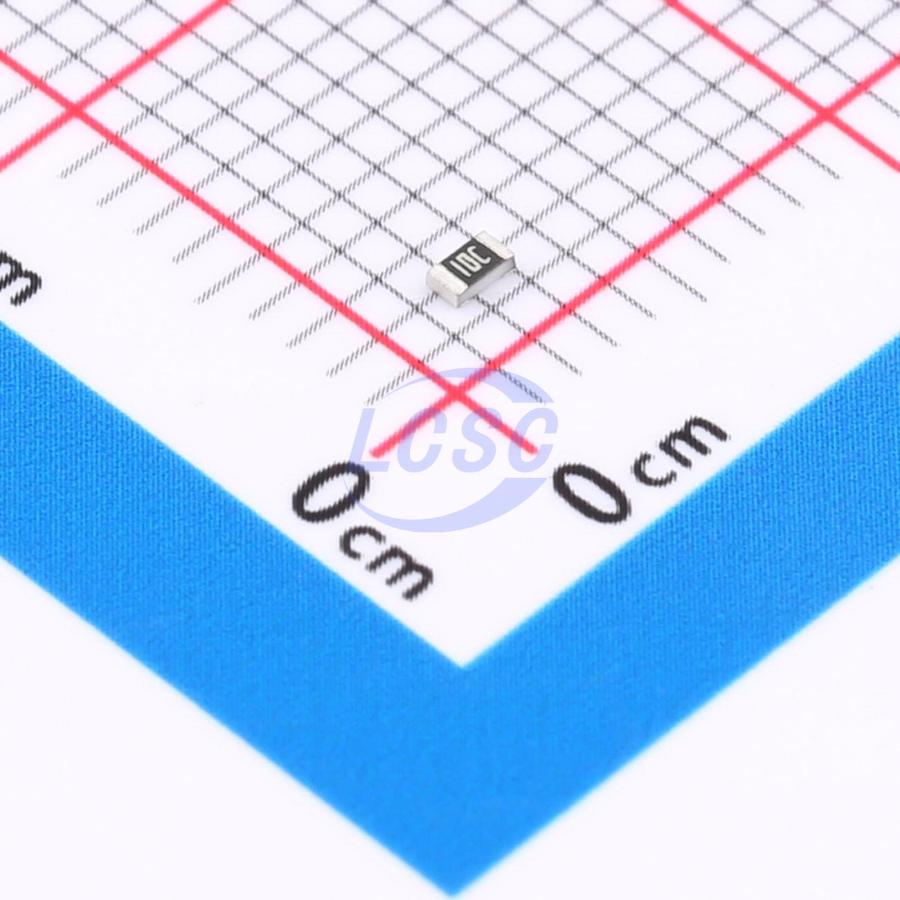

13.0kΩ 0603 1% Texas Instruments	C22797	TPS54360 COMP network series resistor (with C21)	R0603	Basic Part
162kΩ 0603 1% Texas Instruments	C22815	TPS54360 RT resistor (~600 kHz per TI reference design) - revised from 100k which actually set ~960kHz (exceeded pulse-skip/foldback limits)	R0603	Basic Part
19.1kΩ 0603 1% Texas Instruments	C22897	TPS54360 feedback divider bottom resistor (to GND)	R0603	Basic Part

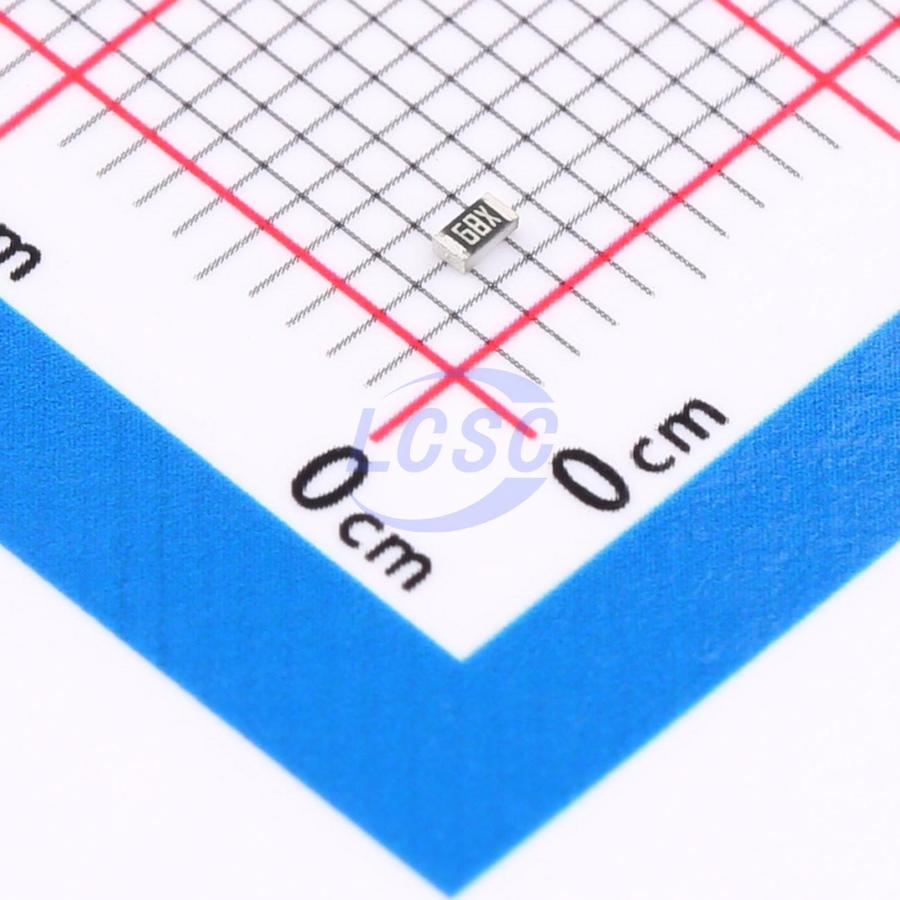

887Ω 0603 1% Texas Instruments	C93619	BQ24075 ISET resistor (~1 A charge current)	R0603	Basic Part
0402WGF0000TCE UNI-ROYAL(厚声)	C17168	0402 0Ω ±1% 62.5mW thick film resistor; max 50V; TCR ±800ppm/°C; -55°C~+155°C	0402	Basic Part
0402WGF1000TCE UNI-ROYAL(厚声)	C25076	0402 100Ω ±1% 62.5mW thick film resistor; TCR ±200ppm/°C; -55°C~+155°C	0402	Basic Part
0402WGF1001TCE UNI-ROYAL(厚声)	C11702	0402 1kΩ ±1% 62.5mW thick film resistor; max 50V; TCR ±100ppm/°C; -55°C~+155°C	0402	Basic Part
0402WGF1003TCE UNI-ROYAL(厚声)	C25741	0402 100kΩ ±1% 62.5mW thick film resistor; max 50V; TCR ±100ppm/°C; -55°C~+155°C	0402	Basic Part
0402WGF4701TCE UNI-ROYAL(厚声)	C25900	0402 4.7kΩ ±1% 62.5mW thick film resistor; max 50V; TCR ±100ppm/°C; -55°C~+155°C	0402	Basic Part
0603WAF0000T5E UNI-ROYAL(厚声)	C21189	0603 0Ω ±1% 100mW thick film resistor; max 75V; TCR -; -55°C~+155°C	0603	Basic Part
0603WAF1000T5E UNI-ROYAL(厚声)	C22775	0603 100Ω ±1% 100mW thick film resistor; TCR ±200ppm/°C; -55°C~+155°C	0603	Basic Part
0603WAF1004T5E UNI-ROYAL(厚声)	C22935	0603 1MΩ ±1% 100mW thick film resistor; max 75V; TCR ±100ppm/°C; -55°C~+155°C	0603	Basic Part
0603WAF100JT5E UNI-ROYAL(厚声)	C22859	0603 10Ω ±1% 100mW thick film resistor; max 75V; TCR ±400ppm/°C; -55°C~+155°C	0603	Basic Part
0603WAF1503T5E UNI-ROYAL(厚声)	C22807	0603 150kΩ ±1% 100mW/0.1W thick film resistor; max 75V; TCR ±100ppm/°C; -55°C~+155°C	0603	Basic Part
0603WAF2001T5E UNI-ROYAL(厚声)	C22975	0603 2kΩ ±1% 100mW thick film resistor; max 75V; TCR ±100ppm/°C; -55°C~+155°C	0603	Basic Part
0603WAF2002T5E UNI-ROYAL(厚声)	C4184	0603 20kΩ ±1% 100mW thick film resistor; max 75V; TCR ±100ppm/°C; -55°C~+155°C	0603	Basic Part
0603WAF2003T5E UNI-ROYAL(厚声)	C25811	0603 200kΩ ±1% 100mW thick film resistor; TCR ±100ppm/°C; -55°C~+155°C	0603	Basic Part
0603WAF2200T5E UNI-ROYAL(厚声)	C22962	0603 220Ω ±1% 100mW thick film resistor; TCR ±100ppm/°C; -55°C~+155°C	0603	Basic Part
0603WAF2201T5E UNI-ROYAL(厚声)	C4190	0603 2.2kΩ ±1% 100mW thick film resistor; TCR ±100ppm/°C; -55°C~+155°C	0603	Basic Part
0603WAF2202T5E UNI-ROYAL(厚声)	C31850	0603 22kΩ ±1% 100mW thick film resistor; max 75V; TCR ±100ppm/°C; -55°C~+155°C	0603	Basic Part
0603WAF3300T5E UNI-ROYAL(厚声)	C23138	0603 330Ω ±1% 100mW thick film resistor; TCR ±100ppm/°C; -55°C~+155°C	0603	Basic Part
0603WAF3301T5E UNI-ROYAL(厚声)	C22978	0603 3.3kΩ ±1% 100mW thick film resistor; max 75V; TCR ±100ppm/°C; -55°C~+155°C	0603	Basic Part
0603WAF3302T5E UNI-ROYAL(厚声)	C4216	0603 33kΩ ±1% 100mW thick film resistor; max 75V; TCR ±100ppm/°C; -55°C~+155°C	0603	Basic Part
0603WAF3303T5E UNI-ROYAL(厚声)	C23137	0603 330kΩ ±1% 100mW thick film resistor; TCR ±100ppm/°C; -55°C~+155°C	0603	Basic Part
0603WAF4700T5E UNI-ROYAL(厚声)	C23179	0603 470Ω ±1% 100mW thick film resistor; max 75V; TCR ±100ppm/°C; -55°C~+155°C	0603	Basic Part
0603WAF4701T5E UNI-ROYAL(厚声)	C23162	0603 4.7kΩ ±1% 100mW thick film resistor; max 75V; TCR ±100ppm/°C; -55°C~+155°C	0603	Basic Part
0603WAF4702T5E UNI-ROYAL(厚声)	C25819	0603 47kΩ ±1% 100mW thick film resistor; max 75V; TCR ±100ppm/°C; -55°C~+155°C	0603	Basic Part
0603WAF4703T5E UNI-ROYAL(厚声)	C23178	0603 470kΩ ±1% 100mW thick film resistor; max 75V; TCR ±100ppm/°C; -55°C~+155°C	0603	Basic Part
0603WAF6801T5E UNI-ROYAL(厚声)	C23212	0603 6.8kΩ ±1% 100mW thick film resistor; max 75V; TCR ±100ppm/°C; -55°C~+155°C	0603	Basic Part
0603WAF6802T5E UNI-ROYAL(厚声)	C23231	0603 68kΩ ±1% 100mW thick film resistor; max 75V; TCR ±100ppm/°C; -55°C~+155°C	0603	Basic Part
0805W8F0000T5E UNI-ROYAL(厚声)	C17477	0805 0Ω ±1% 125mW thick film resistor; max 150V; TCR ±800ppm/°C; -55°C~+155°C	0805	Basic Part
0805W8F1001T5E UNI-ROYAL(厚声)	C17513	0805 1kΩ ±1% 125mW thick film resistor; TCR ±100ppm/°C; -55°C~+155°C	0805	Basic Part
0805W8F1002T5E UNI-ROYAL(厚声)	C17414	0805 10kΩ ±1% 125mW thick film resistor; max 150V; TCR ±100ppm/°C; -55°C~+155°C	0805	Basic Part
0805W8F1003T5E UNI-ROYAL(厚声)	C149504	0805 100kΩ ±1% 125mW thick film resistor; max 150V; TCR ±100ppm/°C; -55°C~+155°C	0805	Basic Part
0805W8F4701T5E UNI-ROYAL(厚声)	C17673	0805 4.7kΩ ±1% 125mW thick film resistor; TCR ±100ppm/°C; -55°C~+155°C	0805	Basic Part
1206W4F1001T5E UNI-ROYAL(厚声)	C4410	1206 1kΩ ±1% 250mW thick film resistor; max 200V; TCR ±100ppm/°C; -55°C~+155°C	1206	Basic Part
1206W4F1002T5E UNI-ROYAL(厚声)	C17902	1206 10kΩ ±1% 250mW thick film resistor; max 200V; TCR ±100ppm/°C; -55°C~+155°C	1206	Basic Part
1206W4F1003T5E UNI-ROYAL(厚声)	C17900	1206 100kΩ ±1% 250mW thick film resistor; max 200V; TCR ±100ppm/°C; -55°C~+155°C	1206	Basic Part
10kΩ 0603 1%	C25804	Pull-up resistors (NRST/I2C/PWRKEY/STB/misc)	R0603	Basic Part
1kΩ 0603 1%	C21190	Status LED current-limit resistors	R0603	Basic Part
22Ω 0603 1%	C23345	USB-C D+/D- series resistors	R0603	Basic Part
39kΩ 0603 1%	C23153	Truck battery voltage divider top resistor (to ADC)	R0603	Basic Part
5.1kΩ 0603 1%	C23186	USB-C CC1/CC2 pulldowns	R0603	Basic Part

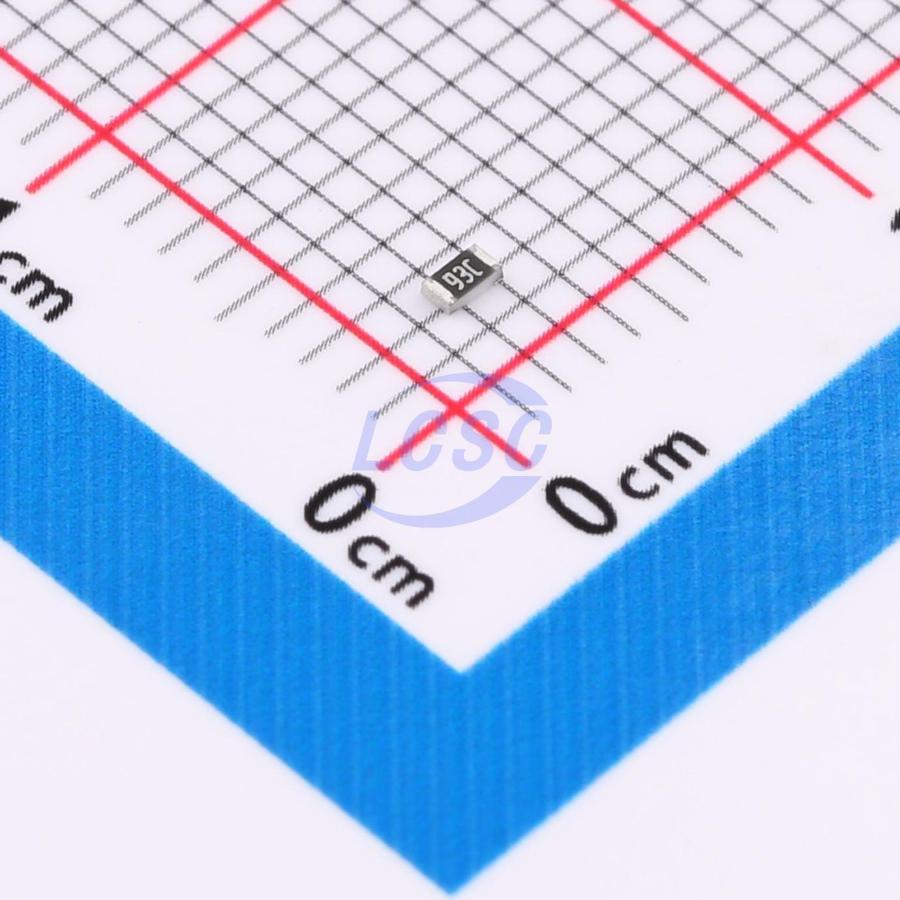

90.9kΩ 0603 1%	C23129	Truck battery voltage divider top resistor (to ADC) - revised from 39k for safe margin at 30V/transient	R0603	Basic Part
