Crystal

5 parts

5 verified Crystal parts from the JLC/LCSC catalog. Every entry ships with schematic symbol and PCB footprint, plus datasheet mirror and 3D model where available — ready to drop into a design headed for JLC assembly.

	Part	LCSC	Description	Package	JLC class
	Q13FC13500004 EPSON(爱普生)	C32346	32.768kHz ±20ppm 12.5pF Crystal Oscillator 32.768kHz Type:Crystal Oscillator Frequency:32.768kHz Normal temperature Frequency Tolerance:±20ppm Normal temperature Frequency Tolerance:±20ppm Load Capacitance:12.5pF Equivalent Series Resistance(ESR):70kΩ Operating Temperature:-40℃~+85℃ Operating Temperature:-4	SMD3215-2P	Basic Part
	X322512MSB4SI YXC(扬兴晶振)	C9002	YSX321SL 12MHZ 4P 3225 20PF ±10PPM -40~85℃ (±20PPM) Crystal Oscillator 12MHz Type:Crystal Oscillator Frequency:12MHz Normal temperature Frequency Tolerance:±10ppm Normal temperature Frequency Tolerance:±10ppm Load Capacitance:20pF Frequency Stability:±20ppm Frequency Stability:±20ppm Operating Temperature:-40℃~+85℃ Operating Tempe	SMD3225-4P	Basic Part
	X322516MLB4SI YXC(扬兴晶振)	C13738	YSX321SL 16MHZ 4P 3225 9PF ±10PPM -40~85℃ (±20PPM) Crystal Oscillator 16MHz Type:Crystal Oscillator Frequency:16MHz Normal temperature Frequency Tolerance:±10ppm Normal temperature Frequency Tolerance:±10ppm Load Capacitance:9pF Frequency Stability:±20ppm Frequency Stability:±20ppm Operating Temperature:-40℃~+85℃ Operating Temper	SMD3225-4P	Basic Part

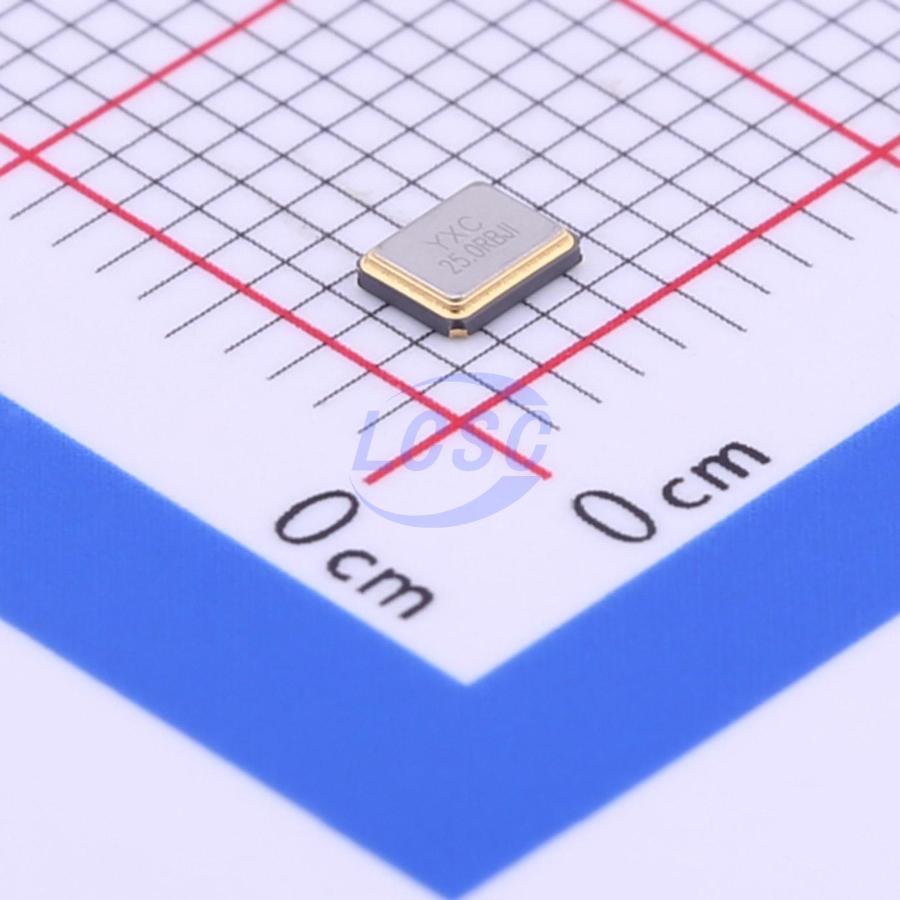

	X322525MOB4SI YXC(扬兴晶振)	C9006	YSX321SL 25MHZ 4P 3225 12PF ±10PPM -40~85℃ (±20PPM) Crystal Oscillator 25MHz Type:Crystal Oscillator Frequency:25MHz Normal temperature Frequency Tolerance:±10ppm Normal temperature Frequency Tolerance:±10ppm Load Capacitance:12pF Frequency Stability:±20ppm Frequency Stability:±20ppm Operating Temperature:-40℃~+85℃ Operating Tempe	SMD3225-4P	Basic Part
	X49SM8MSD2SC YXC(扬兴晶振)	C12674	HC-49SMD 8MHZ 20PF ±20PPM -20~70℃（±30PPM） Crystal Oscillator 8MHz Type:Crystal Oscillator Frequency:8MHz Normal temperature Frequency Tolerance:±20ppm Normal temperature Frequency Tolerance:±20ppm Load Capacitance:20pF Frequency Stability:±30ppm Frequency Stability:±30ppm Operating Temperature:-20℃~+70℃ Operating Temper	HC-49S-SMD	Basic Part
