DF40C-100DS-0.4V(51)

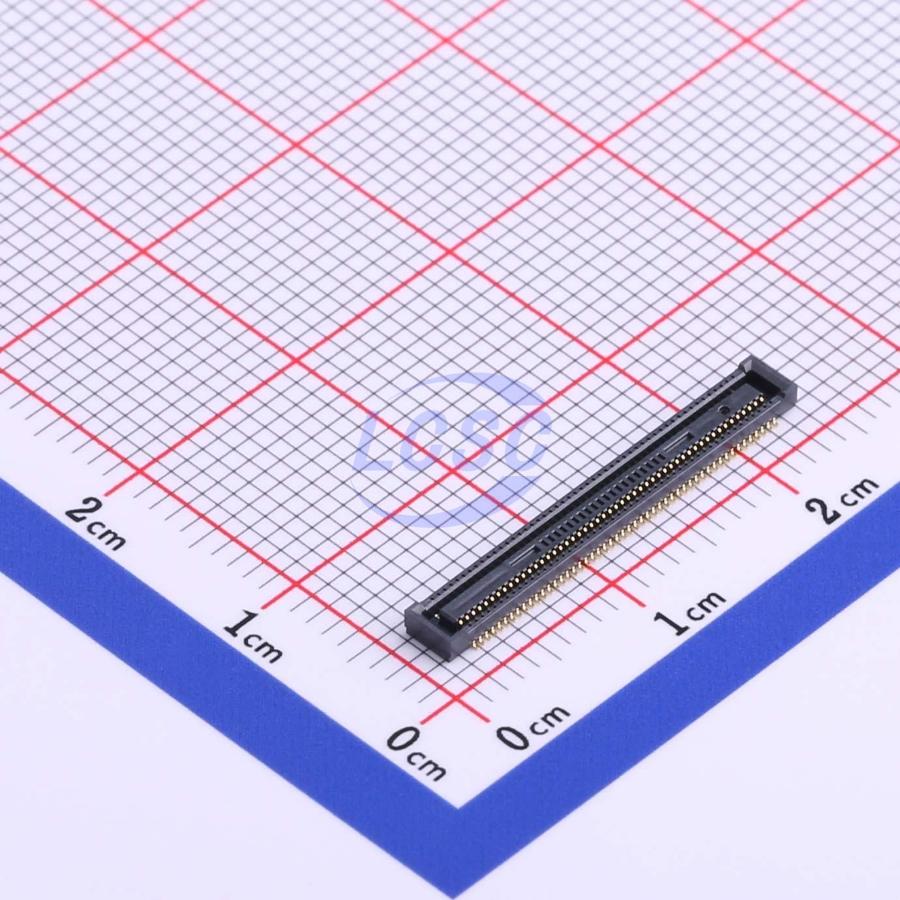

C597931 Extended Part100P 0.4mm vertical SMT board-to-board connector, 2 rows, 300mA, Slot Type Butting. The Raspberry Pi Compute Module 4/5 mates to a pair of these.
board-to-boardmezzanine0.4mm100pdf40hirosecompute modulecm4
Extended part — assembled from JLC's extended library, which adds a small one-time feeder fee per part number.
Footprint
loading footprint…
3D model
Download STEPloading 3d model…
Design files & assets 7 files · click to expand
Datasheet PDF (mirrored) datasheet pdf
DownloadEasyEDA Pro device: C597931 easyeda pro device
DownloadEasyEDA Pro library (device+symbol+footprint): C597931 easyeda pro lib
DownloadEasyEDA component source (symbol + footprint geometry) easyeda source
DownloadJLC/LCSC product image jlc image
Download3D model (OBJ) model 3d obj
Download3D model (STEP) model 3d step
