HR961160C

C55683 Extended Part

RJ45 modular jack with integrated magnetics and link/activity LEDs, 1 port, right-angle through-hole. HanRun HR9611xx series.

rj45magjackethernetintegrated magneticsgigabit1000base-tlink ledactivity led

Extended part — assembled from JLC's extended library, which adds a small one-time feeder fee per part number.

Footprint

loading footprint…

loading 3d model…

Design files & assets 7 files · click to expand

Datasheet PDF (mirrored) datasheet pdf

EasyEDA Pro device: C55683 easyeda pro device

EasyEDA Pro library (device+symbol+footprint): C55683 easyeda pro lib

EasyEDA component source (symbol + footprint geometry) easyeda source

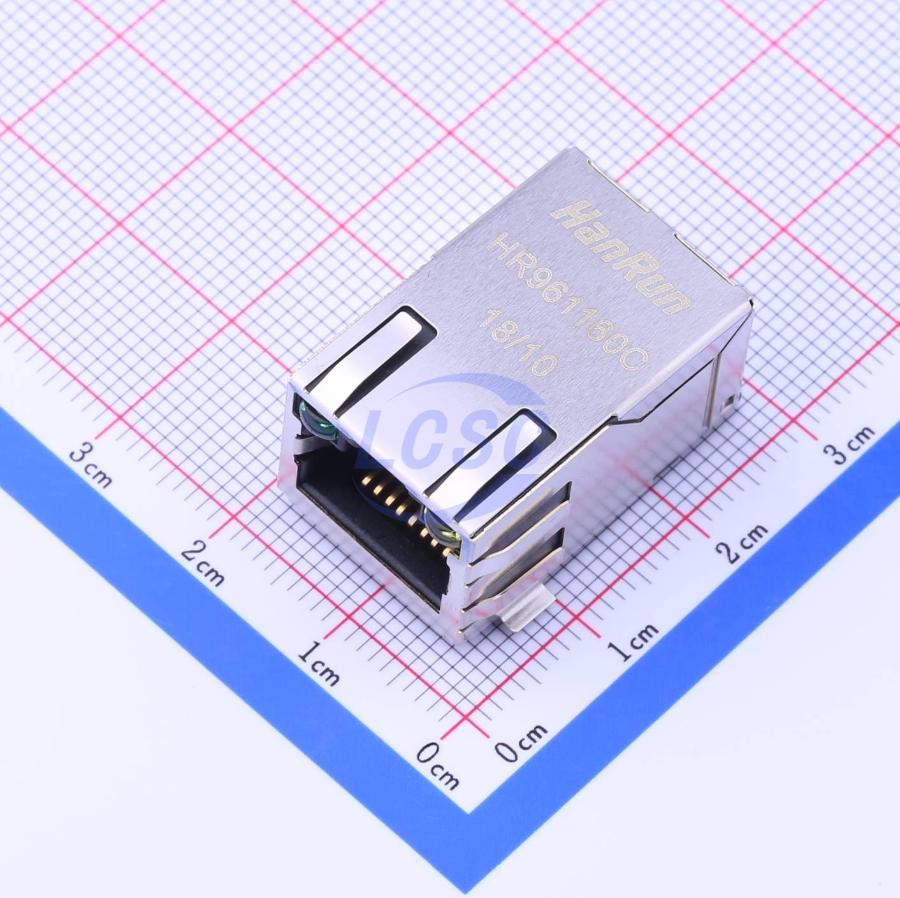

JLC/LCSC product image jlc image

3D model (OBJ) model 3d obj

3D model (STEP) model 3d step
