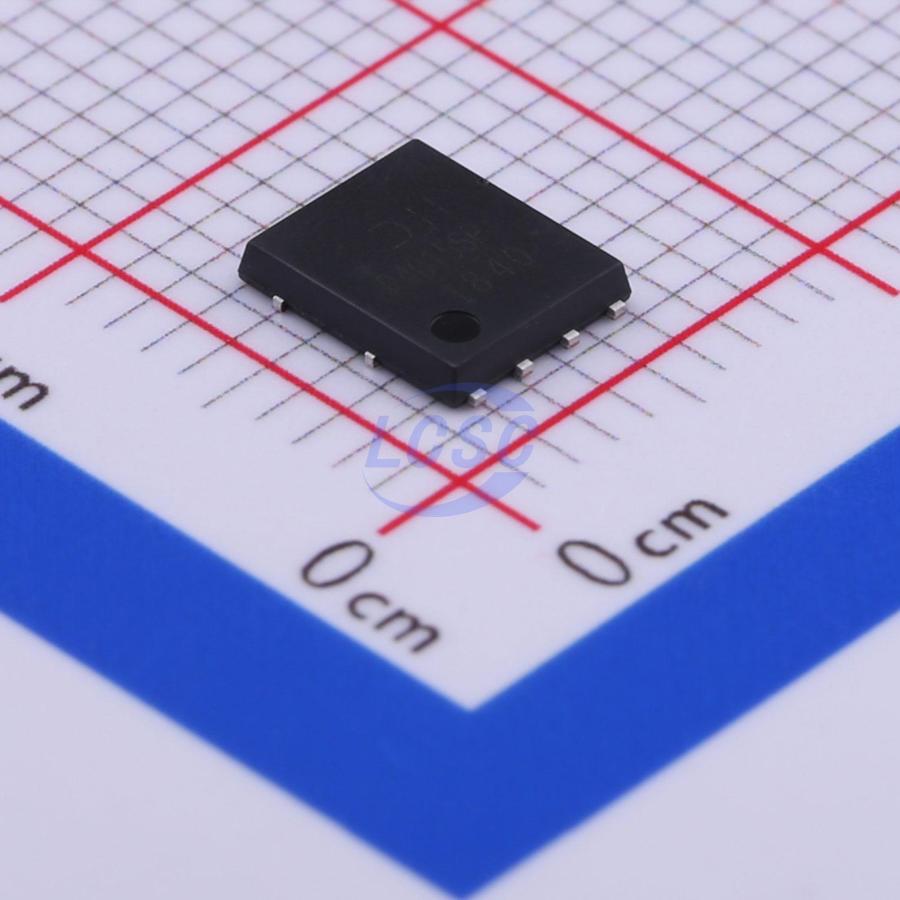

DMP4015SPSQ-13

C384564 Extended Part

1个P沟道耐压:40V 电流:11A P-Channel Number:1 P-Channel Drain to Source Voltage:40V Current - Continuous Drain(Id):11A RDS(on):7mΩ@10V；9mΩ@4.5V Pd - Power Dissipation:2.1W Gate Threshold Voltage (Vgs(th)):2V@250uA Gate Charge(Qg):47.5nC@5V Input Capacitance(Ciss):4.234nF Reverse Transfer Cap

automotivecommon-pcbdmp401540vreverse-polarity-protectionlow-rdsonaec-q101power

Extended part — assembled from JLC's extended library, which adds a small one-time feeder fee per part number.

Footprint

loading footprint…

3D model

loading 3d model…

Engineering notes

Package And Footprint

Package / footprint name: PowerDI5060-8
Pin count: Unknown
EasyEDA symbol UUID: c432ac781492431b85313392e3feb8f1
EasyEDA footprint UUID: de5daf470e174b189bed2310f34affba
EasyEDA device UUID: ea6e23e435954bb380373dda7c77e911
EasyEDA library UUID: 0819f05c4eef4c71ace90d822a990e87

Power And Operating Modes

Active current: Passive part; no quiescent current.
Sleep / standby current: Passive part; no quiescent current.
Supply rails: Application-defined.
Notes: Ratings are seeded from EasyEDA/LCSC properties when present; verify against datasheet for final design.

Datasheet And Links

Datasheet / product URL: https://item.szlcsc.com/datasheet/DMP4015SPSQ-13/358184.html
Product URL: https://item.szlcsc.com/datasheet/DMP4015SPSQ-13/358184.html

Selection Notes

Good for: reuse when package, electrical ratings, footprint, and assembly class match the project constraints
Known layout constraints: Verify package land pattern, decoupling requirements, thermal pad, RF keepouts, crystal routing, and boot straps from the datasheet.
Equivalent search hints: match category p-channel-mosfet, interfaces none captured, package PowerDI5060-8, and EasyEDA footprint UUID de5daf470e174b189bed2310f34affba.
